Additional Grouped graph settings

Scroll Prev Top Next More

Graph Settings tab of Format Graph dialog

Use the Graph Settings tab of the Format Graph dialog to change the direction of bars on a graph from vertical to horizontal, to set the baseline for graph columns, and to adjust the space between columns. Double-click on any bar to open the dialog.

clip0137



Direction

Rotate columns from vertical to horizontal

rotate bars two way

You also can use the Rotate button.

appgroup6

Baseline

Fill in this box to change the baseline for bars on a graph. The default is for the bars to begin at the X axis. Check the box for "Hide Baseline" if you want your bars to float as in the example below.

appgroup7

change baseline two-way

Spacing

This is explained in a separate help page.

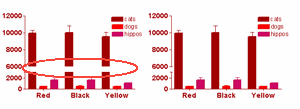

Discontinuous axis

When you have a gap in a Y axis, choose whether or not you also want a gap in any columns that span the gap. Not leaving a gap may make your graph misleading.

appgroup10

graph settings two-way discontinuous



Shape of the legend key

For bar graphs, choose between square or rectangular (wider) boxes before the legend text.
